Platform: WindowsProducts: MSP360 Backup
Article ID: s0306

Restore as Virtual Disk

To perform this restore operation, on the Restore type step of the Restore wizard, you need to choose the Restore as virtual disk option.

You can mount this disk as a virtual drive or use it in your VM environment later on.

The following virtual file formats are supported:

  • Hyper-V Virtual Disk (VHD-format), dynamic
  • Hyper-V Virtual Disk (VHD-format), fixed
  • Hyper-V Virtual Disk (VHDX-format), dynamic
  • RAW disk image, raw
  • RAW disk image, rawsparse
  • RAW disk image, tar
  • RAW disk image, tgz
  • VirtualBox Virtual Disk, dynamic
  • VirtualBox Virtual Disk, fixed
  • VMWare Virtual Disk, vmfsdynamic
  • VMWare Virtual Disk, vmfsfixed.

Users must have administrator-level access to create or edit the restore plans

To restore Hyper-V backup as a virtual disk, click Restore in the main menu.

Proceed with a restore plan:

Select Backup Storage

Select a source cloud or local storage containing the backup to restore.

To add a new storage account, click Add new storage account. Click Next.

Plan Name

Specify whether you need to save the restore plan after completing the wizard, or run the restore procedure only once (without saving this plan and running it automatically on schedule).

You can change the default plan name, if needed.

Click Next.

Type of Data

On this wizard page, you choose what kind of data you need to restore.

All available restore options are active. To proceed with restoring a Hyper-V backup, select the Restore Hyper-V Virtual Machine option.

Click Next.

Select Backup to Restore

On this wizard page, you choose what backup plan you want to restore.

Click Next.

Restore Point

On this wizard page, you can select whether you need to restore specific file versions, or restore to a specific point in time

.

The following options are available in the wizard:

  • Latest version
    Enables you to restore the latest versions of your images available in a backup. Selecting this option will restore only those image versions that were modified before the most recent backup.
  • Point in time
    Enables you to restore image versions available in your backup storage at the specified date and time. Selecting this option will restore only those image versions that were modified before the most recent backup and are not yet available in the destination folder. If earlier versions of the corresponding images already exist in the destination folder, they will not be restored unless you explicitly enable their overwriting further in this wizard.
  • Manually (This option can appear if you are restoring legacy backups)
    Enables you to select which versions of each image to restore. You can specify which versions to restore on the next wizard page.

When restoring a backup that was made on another computer, you may need to synchronize the repository to refresh the file tree.

Click Next.

Restore Source

On this wizard page, you can select virtual machines to restore.

.

Click Next.

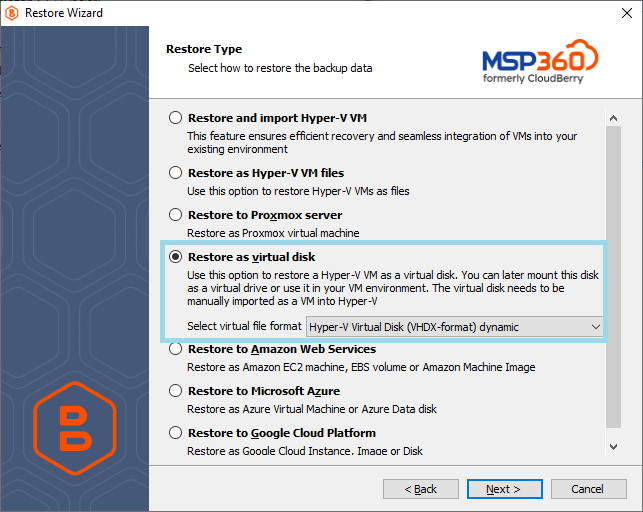

Restore Type

On this wizard page, you need to choose how to restore your data.

The following options are available:

In this example the Restore as virtual disk option is selected. Click Next.

Select Hyper-V Checkpoint (Restore Source)

On this wizard step, select Hyper-V checkpoint to restore.

Click Next.

Destination

Specify the destination folder for restore.

Click Next.

Glacier Smart Restore (Optional)

Manage your Glacier retrieval fees.

Refer to the Glacier Smart Restore article for details.

Click Next.

Encryption Password (Optional)

Specify the encryption password to decrypt the encrypted backup.

Visit the following webpage to learn more about using this feature: Backup Encryption Options Demystified.

Click Next.

Schedule Your Restore Plan (Optional)

If you selected to save a created restore plan for further use, select schedule options.

Refer to the Schedule article for details.

Click Next.

Pre-/Post Actions (Optional)

Specify actions to be executed before or after the restore plan completion.

Refer to the Pre- /Post Actions article for details.

Click Next.

Notifications

Specify email notification settings.

Click Next.

Check Network Shares (Optional)

If you specified one or more network locations on the previous wizard pages, you can have the wizard verify access to these locations.

Refer to the Check Network Shares article for details.

Click Next.

Summary

Check your restore plan

Click Next to proceed to the final page of the wizard. Select whether to start the restore process immediately after closing the wizard by choosing Run Restore now, or run it on a schedule (available only if you saved the restore plan earlier in the wizard). Click Finish to apply the changes.

Edit a Restore Plan

To edit the restore plan, proceed as follows:

  1. Switch to the Restore Plans tab.
  2. Open the restore plan you want to edit by expanding it, then click Edit.
  3. Proceed through the Restore Wizard steps to adjust settings as needed.
  4. If the plan is currently running, you'll need to select one of the following options:
    • Apply changes after the restore plan completes
    • Stop the plan and apply changes.
  5. After choosing the desired option for the running restore plan, click Apply.
  6. Save the edited plan configuration.

You can edit certain scheduled restore plan parameters directly, without using the restore wizard, as long as the restore plan is not currently running. Editable parameters are marked with a pencil icon. To make a quick edit, simply click the pencil icon next to the parameter

Delete a Restore Plan

To delete the restore plan, proceed as follows:

  1. Switch to the Restore Plans tab.
  2. Open the plan to delete, expand it, then click Delete.
  3. Click Yes to confirm the restore plan deletion.
